Calpack 500 Side Sealer
Function

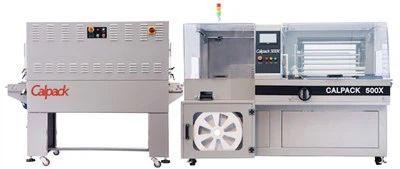

Calpack 500X Side Seal Sealer with Heat Shrink Tunnel
Explore the advanced Calpack 500, designed to meet the changing dynamics of todays automation needs with precision and efficiency. This automatic side sealer excels at handling Polyolefin, Polyethylene, and Polypropylene films in center folded or flat formats using the PX film folder. With a remarkable output capability of up to 7200 packs per hour, it caters perfectly to industries such as beverages, preserved foods, cosmetics, pharmaceuticals, household products, and more.
- Sealing Area: 80mm - infinity (L) x 50mm - 420mm (W) x 2mm - 150mm (H)
- Max Product Dimensions: ∞ (L) x 500mm (W) x 200mm (H)
- Min Product Length: 80mm
- Power Supply: 3 Phase, 380V, 50/60Hz
- Heater: 4.5 kW
- Air Pressure: 6 kg/cm² (~85 psi)
- Machine Dimensions: 2103mm x 1545mm x 1597mm (L x W x H)
Features
- Longitudinal intermittent sealing
- Operator interface: Panel PC, 7'' touch screen
- Automatic transversal bar height check
- Electronically controlled conveyor speed
- Product counter, error correction
- CE Certification
Accessories: Various options available.
